Product Details:
Payment & Shipping Terms:
|
| Type:: | VPLF Series Black Engine Oil Bleaching Pressure Leaf Filter | Color:: | As Requested |
|---|---|---|---|
| Materials:: | Stainless Steel Or Carbon Steel | Working Pressure:: | 0.1-0.49Mpa |
| Design Temperature:: | ≤150℃ | Vibrator Air Pressure:: | 0.45-0.6Mpa |
| Maximum Working Pressure:: | 0.6Mpa | Vibrating Frequency (mm):: | 3000-4500 Times/minute |
| Filter Sieve:: | All Stainless Steel | After-sales Service:: | Engineers Available To Service Machinery Overseas |

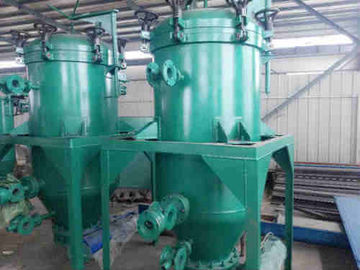

Palm oil pressure leaf filter(VPLF) is one kind of low pressure filtration equipment. Its main filter elements is filter leaves constructed by multi-layer stainless steel filter mesh.
Its filtration effect is realized by both filter mesh and filter cake. According to test, the filtration precision can reach 5-10 microns.
Vertical plate pressure leaf filter machine is mainly used for edible oil & chemical industries, such as crude oil filtration, bleached and/or detoxified oil filtration, winterized oil filtration, chemical , crystallization separation in various processes of petrochemical industry, inorganic chemical industry, organic chemical industry, filtration separation of various catalysts, decolorization filtration of chemical products and safety filtration etc..
The main filter elements of vertical leaf filter is inner filter leaves. Each filter leaf is constructed by 5 layer filter mesh(2 layers filter mesh, 2 layer support mesh and middle support frame). The mesh size and filtration precision is determined by the materials that need to be treated.
Compact structure, small footprint.
SS304/316 filter mesh, good filter effect, low loss.
Automatic vibration cake discharging, low labor intensity.
Fully closed design. Clean working environment.

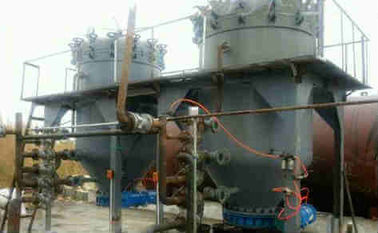

Two sets in parallel to realize continuous production.
| Model | Filter area | Diameter | Cake Volume | Capacity(t/h) | Height | ||
| Oil | Resin | Drink | |||||
| VPLF-2 | 2Sq.meter | 400mm | 30L | 0.4-0.6 | 1-1.5 | 1-3 | 1600mm |
| VPLF-4 | 4Sq.meter | 550mm | 60L | 0.5-1.2 | 2-3 | 2-5 | 1950mm |
| VPLF -7 | 7Sq.meter | 650mm | 105L | 1-1.8 | 3-6 | 4-7 | 2150mm |
| VPLF -10 | 10Sq.meter | 800mm | 150L | 1.6-3 | 5-8 | 6-9 | 2300mm |
| VPLF -15 | 15Sq.meter | 900mm | 300L | 3-5 | 7-12 | 10-13 | 2400mm |
| VPLF -20 | 20Sq.meter | 1100mm | 400L | 4-6 | 9-15 | 12-17 | 2500mm |
| VPLF -30 | 30Sq.meter | 1200mm | 600L | 6-8 | 14-23 | 19-25 | 2600mm |
| VPLF -40 | 40Sq.meter | 1300mm | 800L | 8-11 | 21-34 | 30-38 | 3000mm |
| VPLF -50 | 50Sq.meter | 1400mm | 1040L | 10-15 | 27-45 | 42-51 | 3300mm |
| VPLF -60 | 60Sq.meter | 1500mm | 1200L | 11-17 | 36-60 | 56-68 | 3500mm |
| VPLF -80 | 80Sq.meter | 1600mm | 1600L | 13-21 | 40-68 | 64-78 | 3800mm |
1. Leaf filter installation,Debugging:
First standard service is Providing leaf filter machine installation files, technical data and related soft
copies or videos etc. Second we can also offer overseas on-site engineer team for you.
2. Leaf filter warranty:
Loreek guarantee the leaf filter could meet production technical standard and performance requirements indicated in the agreement.
Warranty: 12 months for the machine after delivery.
3. Leaf filter technical support:
Our company will make occasional call to find problems and solve them in time.
Provide technical support timely.
4. 24 hours website hot line service:
For big leaf filters order or project,to dispatch technician is negotiable. Aftersales Guarantee
Welcome contacting us for more info about the pressure leaf filter machine lines for your oil refinery machine line equipment.
