VPLF series Edible crude palm oil filtering vertical pressure leaf filter for oil refinery machine line apply

            Edible crude palm oil refinery machine line apply Vertical Pressure Leaf                                                      Filter(VPLF) manufacturer on sale

Vertical Pressure leaf filter introduction:

Vertical pressure leaf filter(VPLF) is one kind of low pressure filtration equipment. Its main filter elements is filter leaves constructed by multi-layer stainless steel filter mesh.  Its filtration effect is realized by both filter mesh and filter cake. According to test, the filtration precision can reach 5-10 microns.

high efficiency inclosed pressure leaf filter is stainless steel woven mesh filter.  The pressure leaf filter has unique and compacted design and high filtering efficiency advantages. It does not cost the filter cloth, filter paper or filter cartridge, just uses a little filter aid, so the filtration cost is low.

Palm oil refinery machine line apply pressure leaf filter machine is easy to operate, maintain and clean. Manual discharging and auto discharging are available according to customer's requirement. The filter area ranges from 2m2 to 200m2. The housing material can be carbon steel or stainless steel to meet clients' different needs.




Vertical pressure leaf filter applications:

Vertical pressure leaf filter is mainly used for edible oil & chemical industries, such as crude oil filtration, bleached and/or detoxified oil filtration, winterized oil filtration, chemical , crystallization separation in various processes of petrochemical industry, inorganic chemical industry, organic chemical industry, filtration separation of various catalysts, decolorization filtration of chemical products and safety filtration etc..

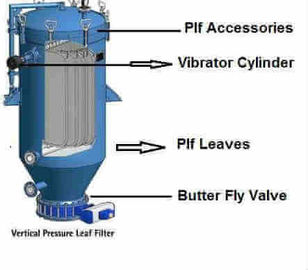

​Pressure leaf Filter Elements Construction:

The main filter elements of vertical leaf filter is inner filter leaves. Each filter leaf is constructed by 5 layer filter mesh(2 layers filter mesh, 2 layer support mesh and middle support frame). The mesh size and filtration precision is determined by the materials that need to be treated.
​

Pressure leaf filter consists of filter housing, filter screen, head lifting device and discharging device.
According to the different filtering materials required it can customize various whole filtration system (including the filter, mixing tank, feeding pump, pipes, vaves, control system, etc.).


The leaf sieve is made of layers of stainless steel wire screens, then installed on the central filtrate collecting tube, so it's convenient to discharge and clean. The material mexed with filter aids in the mixing tank first, then pumped it into the filter circularly to form a layer of filter cake. This process called the diatomite precoating and then begin to filtrate. The tiny filter aid particles can provide countless wispy channels to block the suspended solids, and only the clean liquid can go through. And while filtering, the new layers will be formed, and it will not cause block, thus realize filtering via filter cake layer. When filtering, if need decoloration, activated carbon might be needed. If filter the dirty liquid, such as squeezed crude oil, no need adding the filter aid.

Pressure leaf filter Features:

Compact structure, small footprint.
SS304/316 filter mesh, good filter effect, low loss.
Automatic vibration cake discharging, low labor intensity.
Fully closed design. Clean working environment.
Two sets in parallel to realize continuous production.

Vertical Pressure leaf fiilter parameters:

Palm oil pressure leaf filter Packaging Details:

The normal package is wooden box(Size: L*W*H).  Export to european countries, the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
