Product Details:
Payment & Shipping Terms:
|
| Type: | Rotary Vibrating Screen | Application:: | Fine Powder Screening |
|---|---|---|---|
| Voltage:: | 110V/220V/240V/380V | Screening Precision:: | Up To 98% |
| Body Material:: | Carbon Steel/ SS304 / SS316 | Vibrating Motor:: | ABB Or Custom |
| Color:: | According To Different Needs | Tumbler Screen Mesh Area:: | 0.28-5.3㎡ |
| Motor Power:: | 0.75-5.5Kw | Noise Level:: | ≤75dB |

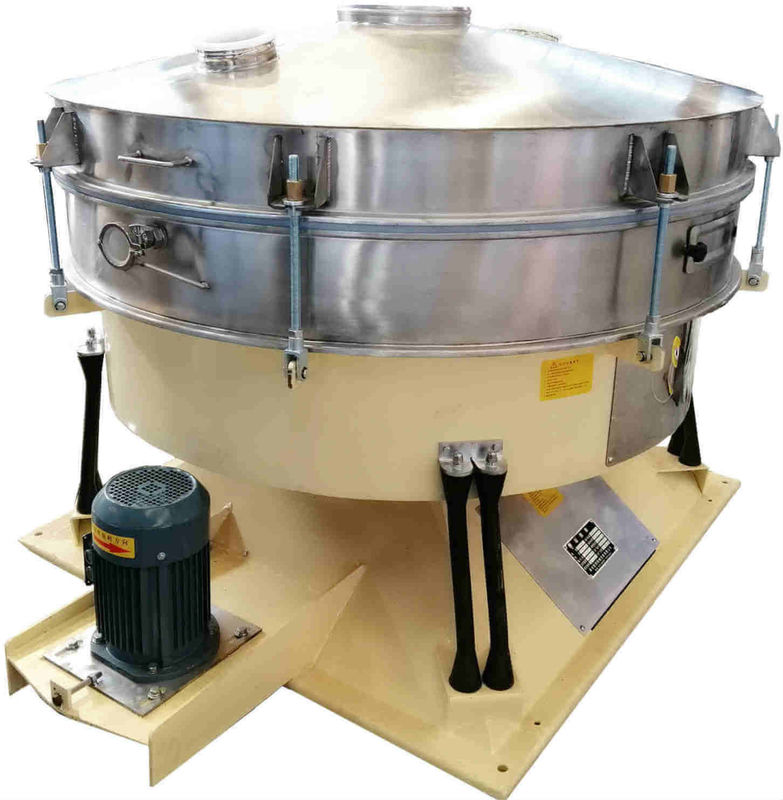

TSM Series Tumbler Screening Machine(TSM) is one type high capacity, high accuracy and high efficiency screening equipment. It is specially designed to meet clients whoever require high production capacity, high-precision screening.
Rotary Tumbler screen Technical Parameters:
| Model | TSM1000 | TSM1200 | TSM1600 | TSM1800 | TSM2000 | TSM2600 |
| Diameter | 1000mm | 1200mm | 1600mm | 1800mm | 2000mm | 2600mm |
| Area | 0.71 m2 | 1.11 m2 | 1.83 m2 | 2.46 m2 | 3.05 m2 | 5.31 m2 |
| Mesh Size | 0.028mm-12mm | |||||
| Layer(s) | 1-3 | 1-5 | ||||
| Power | 1.5KW | 1.5KW | 3.0KW | 4.0KW | 4.0KW | 5.5KW |
| Net Cleaning | Bouncing ball, Ultrasonic device, Rolling brush | |||||
Tumbler screen equipment Application Industries:
Tumbler can be used for sieving find powder or granules with high capacity and high value, such as, salt, plastic granules, starch, sugar, graphite, rubber powder, chemical powder etc.
