Product Details:
Payment & Shipping Terms:
|
| Materials: | Stainless Steel | Voltage: | 220V/380V/415V/440V/460V |
|---|---|---|---|
| Discharging Time: | Adjustable | Name: | Vacuum Conveyor For Powder And Granules Conveying |
| Loading Time: | 0-20 Seconds | Application: | Powder And Granules |
Products Introduction

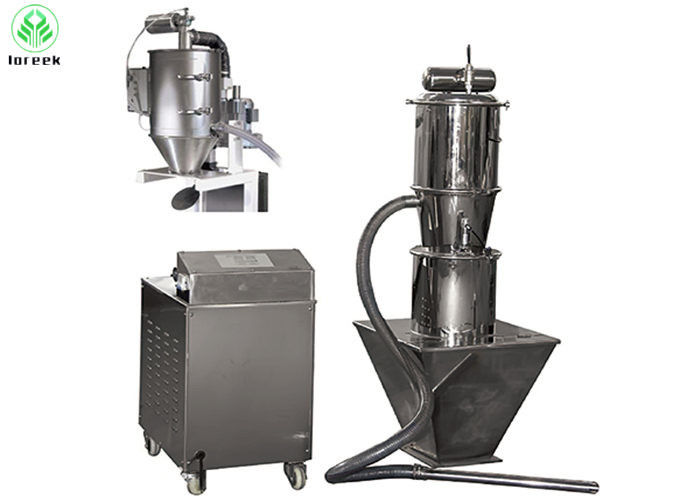

Loreek Penuamtic Vacuum Conveyor For Food Powder
Our Vacuum Conveyor consist of vacuum pump(no oil and water), stainless steel suction tube, flexible hose, PE filter or SUS 316 filter, compressed air cleaning device, pneumatic discharging device, vacuum hopper and automatic level control device. This machine can reach GMP standard and is the ideal feeding to food industry and pharmaceutical industry.
Characteristic:
--- Using compressed air as primary energy sources
--- Meet to GMP standard
--- Solving the stratification of powder and granules
--- Made of nontoxic and corrosion resistant materials
--- Leakage free capsule, to prevent cross contamination
--- Materials are not adhering to the inner surface of the conveyor
--- Intelligent control and high automation
--- Modular structure, easy to clean and dismantle
--- Small and light, easy to install
--- Low noise and free from vibration
--- Energy saving and low running cost
Technica Parameters
| Model | Power(KW) | Pressure(bar) | Capacity(Kg/h) |
| LVC-1 | 1.5 | 4-6 | 300 |
| LVC-2 | 2.2 | 4-6 | 600 |
| LVC-3 | 3 | 4-6 | 1200 |
| LVC-4 | 5,5 | 4-6 | 2000 |
| LVC-5 | 5.5 | 6 | 3000 |
| LVC-6 | 7.5 | 6 | 4000 |
| LVC-10-6 | 7.5 | 6 | 6000 |
| LVC-20-5 | 11 | 6 | 5000 |
The vacuum conveyor capacity is caculated on the basis of wheat flour and 3 meters conveying distance!for exact capacity of yeast powder,please contact us via the bottom contact information!
Application
Vacuum Conveyor is the most advanced, perfect vacuum conveying equipment of powder material, granular material, powder-granular mixture. It can automatically transport a variety of materials to mixing machine, packing machine, injection molding machine, grinder etc. With the advantage of cost reducing and no powder pollution.
