Product Details:
Payment & Shipping Terms:
|
| Application: | Solid-liquid Separation | Materials: | Stainless Steel |
|---|---|---|---|
| Capacity: | 3-5m3/hour |
| Model | LS-180 | LS-200 | LS-230 |
| Motor Power(KW) | 4 | 5.5 | 5.5 |
| Pump Power(KW) | 3 | 3 | 3 |
| Speed | 45r/min | 45r/min | 45r/min |
| Voltage | 380V | 380V | 380V |
| Cow manure(m3/h) | 3-6 | 5-8 | 8-9 |
| Pig manure(m3/h) | 4-10 | 6-12 | 7-13 |
| Chicken manure(m3/h) | 2-4 | 4-6 | 5-7 |
1.This dry and wet separator is small size, low speed, simple operation, convenient installation and maintenance, low cost, high efficiency, fast investment recovery, no need to add any flocculant.
2.The solid-liquid separator machine adopts high-strength screw shaft, anti-corrosion alloy double spiral blade and screen mesh made of stainless steel, and the spiral blade adopts manganese treatment, which is twice the service life of other similar products.
3.The mother liquor used for fermentation is subjected to solid-liquid separation, and the separated biogas residue has a water content of 30-40% or less, and the solid waste liquid is separated.
4.The manure dewatering machine can be widely used as a slag separation of chicken, cattle, horse and various intensive farms for high-concentration organic sewage such as animal manure, distiller's grains, dregs, starch residue, sauce residue and slaughterhouse.
1.One unit pump(with cutting knife, never will be blocked)
2.One unit water pipe
3.One unit switch box
4.Two units motor(one is for separator,the other is for pump)
5.One unit screw(stianless steel, anti-corrosive)
6.One unit screen from three model (0.3mm, 0.5mm,0.75mm ) (stianless steel, anti-corrosive)

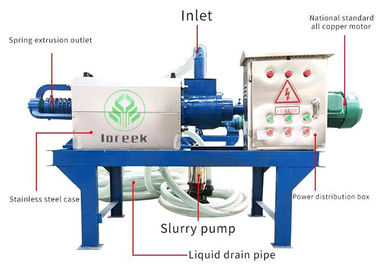

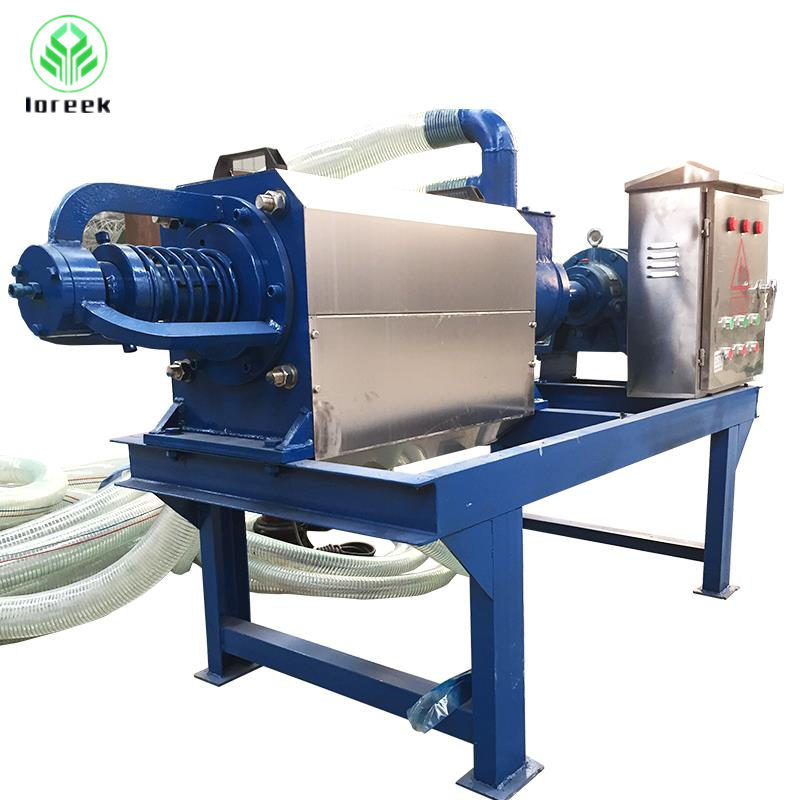

Details of manure dewatering machine
Screw
The machine adopts high-strength screw shaft, anti-corrosion alloy double-coil blade and spiral blade with manganese treatment, which is twice the service life of other similar products.
Screen Mesh
Screen mesh made of stainless steel.Made by multiple programs.For different materials, you can replace the screen with different density to achieve the desired effect.
Outlet
There is a spring at the exit to adjust the dryness and wetness of the extruded material, and separate the solid manure and manure with a water content of only 35%.
Cycloidal Reducer
Compact and small size.Smooth operation and low noise.Long service life, the main parts are made of high carbon chrome steel material, high strength is obtained by quenching treatment (HRC58~62), and some transmission contact adopts rolling friction, so it has long durability and long service life.
