Product Details:
Payment & Shipping Terms:
|
| Filter Plate: | PP | Application: | Solid-liquid Separation |
|---|---|---|---|
| Operation: | Semi-Automatic/Fully Automatic | Color: | As Request |
| Cake Thickness: | 30/35/40mm | Plate Size: | 630/800/870/1000/1250/1500/2000mm |
Products Introduction:

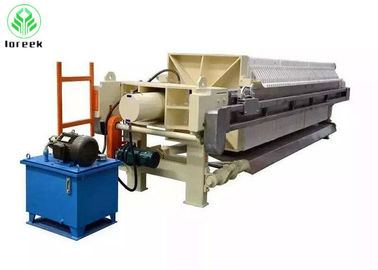

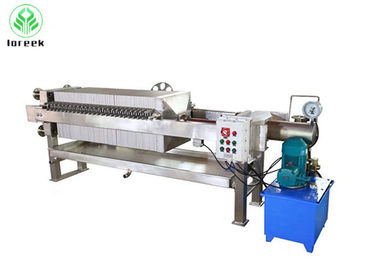

Loreek brand solid-liquid separation filter press is suitable for solid-liquid separation in pharmaceutical, chemical, pharmaceutical, metallurgy, dyes, food, ceramics, oil refineries, sewage treatment and other environmental protection industry.
It is available in manual, semi-automatic, and fully automatic units incorporating PLC control, automatic cake slagging system, automatic cloth washing system. You can easily use our machine to satisfy your desire.
Technical Parameters
| Model | Filter area | Plate size | Cake thickness | Chamber volume | Plate number |
Filtration Pressure |
| XA(M)Y4/450-30U | 4m2 | 450x450mm | 30mm | 60L | 9 PCS | 0.6Mpa |
| XA(M)Y10/450-30U | 10m2 | 450x450mm | 30mm | 151L | 24PCS | 0.6Mpa |
| XA(M)Y20/630-30U | 20m2 | 630x630mm | 30mm | 297L | 24PCS | 0.6Mpa |
| XA(M)Y40/800-30U | 40m2 | 800x800mm | 30mm | 595L | 38PCS | 0.6Mpa |
| XA(M)Y80/870-30U | 80m2 | 870x870mm | 30mm | 1210L | 62PCS | 0.6Mpa |
| XA(M)Y100/1000-30U | 100m2 | 1000x1000mm | 30mm | 1505L | 57PCS | 0.6Mpa |
Note:The above sheet is some of our models for your reference. Surely we can offer other options as request.
Filtration effect:
