Product Details:
Payment & Shipping Terms:
|
| Type:: | HPLF Series Edible Oil Horizontal Pressure Leaf Filter | Color:: | As Requested |
|---|---|---|---|
| Materials:: | Stainless Steel Or Carbon Steel | Working Pressure:: | 0.1-0.49Mpa |
| Design Temperature:: | ≤150℃ | Vibrator Air Pressure:: | 0.45-0.6Mpa |
| Maximum Working Pressure:: | 0.6Mpa | Vibrating Frequency (mm):: | 3000-4500 Times/minute |
| Filter Sieve:: | All Stainless Steel | After-sales Service:: | Engineers Available To Service Machinery Overseas |

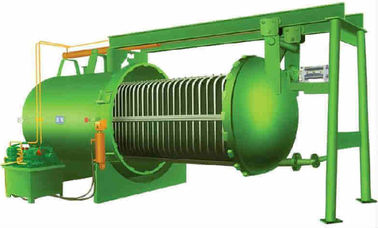

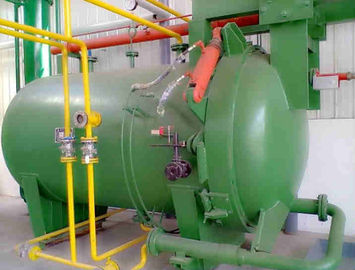

HPLF series horizontal leaf filter is a fine clarify filtrate equipment with high-efficiency and energy-saving and auto-hermetic. It is widely used in chemicals, petroleum, foodstuff, and pharmacy.
1. Fully closed filtration, no leakage, no environmental pollution.
2. Filtration pad automatically pull the structure, easy to work in the observation and cleaning.
3. Duplex filters, larger filter area, large slag amount of capacity.
4. Vibration slag, reduce labor intensity.
5. Hydraulic control, operational automation.
6. The machine can be made into large capacity, large filtration system.
HPLF series horizontal pressure leaf filter can be used for below industries and get good effect:
1. Dry cake, semi-dry cake and clarification of the leachate recycling
2. Chemical: sulfur, aluminum, composite, Plastic, aluminium dye intermediates, bleach, lubricant additives, polyethylene.
3. Food industry: Sugar juices, oils, waxes, bleaching, skim off.
The main filter elements of vertical leaf filter is inner filter leaves. Each filter leaf is constructed by 5 layer filter mesh(2 layers filter mesh, 2 layer support mesh and middle support frame). The mesh size and filtration precision is determined by the materials that need to be treated.
Compact structure, small footprint.
SS304/316 filter mesh, good filter effect, low loss.
Automatic vibration cake discharging, low labor intensity.
Fully closed design. Clean working environment.
Two sets in parallel to realize continuous production.
| Model | Filter Area(m2) | Cylinder Diameter (mm) | Working Pressure(Mpa) | Working Temperature(℃) | Capacity(T/h.m2) | ||
| Grease | Resin | Beverage | |||||
| HPLF -5 | 5 |
Ø900Ø1200Ø1400Ø1500 Ø1600Ø1700Ø1800Ø2000 |
0.4 | 150 | 0.2 | 0.7 | 0.8 |
| HPLF -10 | 10 | 0.4 | 150 | ||||
| HPLF -15 | 15 | 0.4 | 150 | ||||
| HPLF -20 | 20 | 0.4 | 150 | ||||
| HPLF -30 | 30 | 0.4 | 150 | ||||
| HPLF -40 | 40 | 0.4 | 150 | ||||
| HPLF -50 | 50 | 0.4 | 150 | ||||
| HPLF -60 | 60 | 0.4 | 150 | ||||
| HPLF -70 | 70 | 0.4 | 150 | ||||
| HPLF -80 | 80 | 0.4 | 150 | ||||
| HPLF -90 | 90 | 0.4 | 150 | ||||
| HPLF-100 | 100 | 0.4 | 150 | ||||
| HPLF-120 | 120 | 0.4 | 150 | ||||
| HPLF-140 | 140 | 0.4 | 150 | ||||
| HPLF-160 | 160 | 0.4 | 150 | ||||
| HPLF-180 | 180 | 0.4 | 150 | ||||
